Courtauld Connects Phase I: Restoring The Courtauld Institute of Art

Our Special Projects and McAlpine Design Group teams worked to deliver Courtauld Connects Phase I at the Courtauld Institute of Art, Somerset House in London.

We are proud to have been part of the team delivering Courtauld Connects at The Courtauld Institute of Art in London, which has been voted the winner of the 2023 Peoples’ Poll on the RIBA Stirling Prize.

The Courtauld Connects transformation of The Courtauld Institute of Art, situated in the North Block of Somerset House in central London, is the most significant modernisation project in its history. The scheme has remodelled the home of one of the UK’s greatest art collections.

Phase I delivered improved gallery space and educational facilities, with a focus on maximising the feeling of space and making it accessible for all.

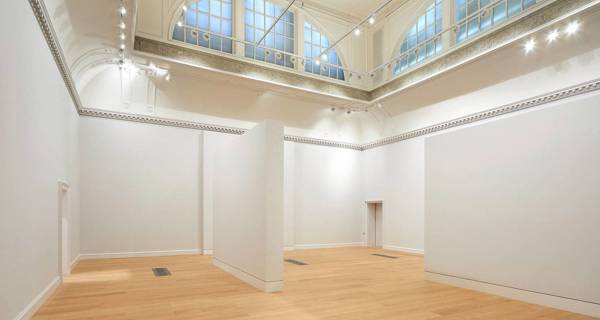

Maximising the building’s footprint in ways that were sympathetic to the building’s fabric was key to the team’s approach: a new temporary exhibition space has been created in former attic and office spaces, and a former painting store remodelled into additional gallery space. The creation of a new lift and step-free access to the entrance, standardised floor levels and new visitor welcome areas make The Courtauld Gallery more accessible than ever before.

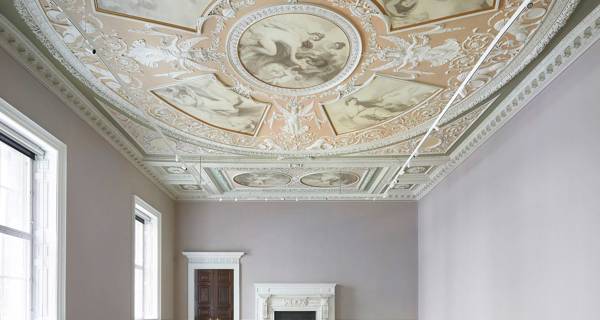

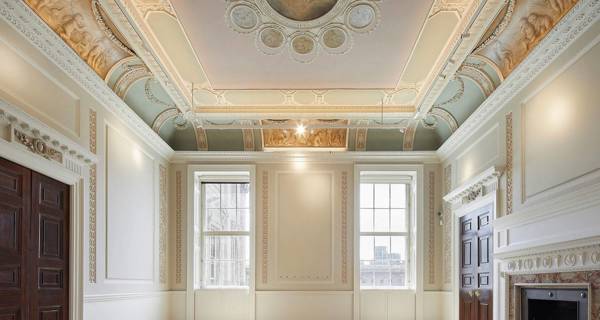

The re-instatement of the Great Room, which was previously subdivided into four smaller rooms, saw the space restored to its original proportions. The room is the perfect venue to showcase the gallery’s world-class collection of Impressionist and Post-Impressionist masterpieces. The project also saw the elegant restoration of the Blavatnik Fine Rooms on the second floor with new door openings, floors, lighting and environmental controls. The basement was also redesigned to create a new shop.

Our work on this Grade I listed building included carefully altering, conserving and reservicing the traditional stone and masonry built property. Our specialist supply chain allowed us to effectively deliver the breadth of works to a scheme that involved:

  • Working with traditional materials including historic lime plaster repairs
  • Fine art conservation of listed permanent decorative features
  • Substantial and complex temporary works and structural alterations
  • Weaving in new services into the listed structure

Project summary

    • Client: The Courtauld Institute of Art
    • Sector: Heritage & Special Projects
    • Region: London
    • Services: Special Projects, Construction Management
    • Completion Date: 2021

RIBA Stirling Prize: Courtauld Connects, The Courtauld Institute of Art

We had a series of principle aims.
They were to do with the conservation of this fantastic historic building.
They were also to do with making it accessible,
making the works beautifully visible and enjoyable,
and creating spaces in the building,
which would be actually new, i.e. not a part of the original,
but which would make the functionality of the building really flexible for
the future.
When William Chambers designed the building,
he designed it for nine different organisations to be housed in.
We were working to bring an organisation more closely together in a building
that was designed to separate out organisations, with respect for the
historic nature of the spaces and their qualities.
We also had to soften those interventions to create a
conversation.
We developed an approach where there was some extremely significant
interventions in the building. Tunnelling through the vaults,
bridging across the second floor galleries,
and we combined that with thousands and thousands of small adjustments,
which I would hope most people never notice.
You have to strip away a lot of architecture to understand what's underneath it,
to really find what the thing's about. Once you've done that,
you can then build up your strategy and response to that.
The rewarding thing at the end is now people seem to talk about the artwork
more.
They notice details and things about the pictures and paintings more than they
did. The accessibility into the front doors was part of the competition,
so everyone had to put forward a proposal for how they would achieve that,
because obviously that was deemed to be one of the most difficult things.
Grade one listed, very visible entrance space.
Like a lot of things on the project,
what we looked to do was find a balance between an intervention and a
restorative act. So we removed steps,
we put ramps into what were the side aisles. We reused the stone,
and we found the original quarry in the north of Sweden where the stone had come from,
and we went back to that quarry and got additional stone.
There
are so many wonderful museums around the world,
a lot of them feel quite similar.
And so we wanted this to feel distinctive and I think to create an
experience for visitors that was really personal and sort of memorable and to
encourage people to look closely at works and,
and I think that is achieved really by bringing the building and the collection
into a sense of unity, and having variety in the spaces and,
and a sort of overriding sense of calm and ease as you move from one space
to the next. Through a continuity of the architecture.
There's been an amazing sort of sleight of hand that the architects have pulled
off, which is that they haven't been able, for obvious reasons,
we've only got this building - there's not an extension,
they haven't been able to create huge amounts of new floor space,
although there's quite a bit of that. But what they've done,
I think in opening up the flow of the building and relighting it,
and the redisplay that we've done of the collection is make it feel much,
much bigger than it did before.
And there's a bit of truth to that in terms of the actual floor space,
but it's also about the presentation and the whole series of very subtle
interventions that have gone into the transformation of the building.
English (United Kingdom)

Stakeholder management

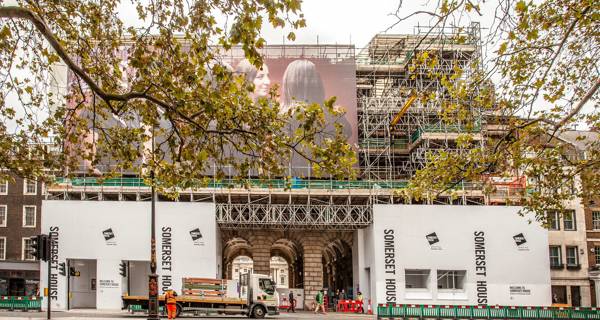

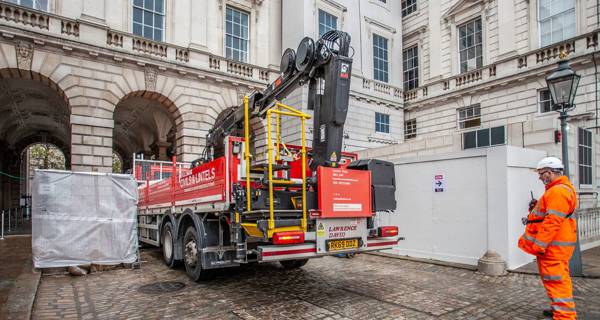

We were required to keep the main vestibule gateway, the only access route from the Strand for Somerset House Trust events, open throughout the project. Our team worked with McAlpine Design Group to validate and deliver a safe and cost-effective scheme for a temporary bridge that could accept a loaded fire appliance and large articulated service vehicles while we carefully remodelled the vaults at lower ground level to create useable space for the gallery.

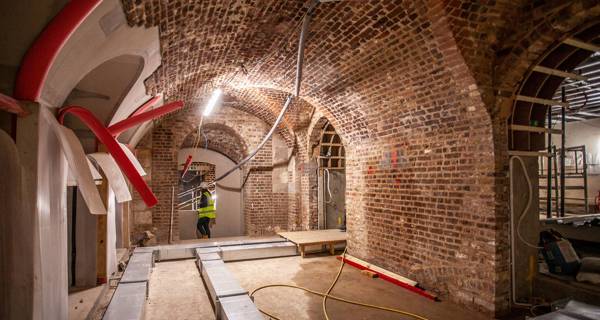

The support structures at lower ground level for the vestibule connecting the public from the Strand entrance to Somerset House had to be cut. A temporary bridge was installed in the vaults underneath the vestibule to carry all thoroughfare from the Strand to Somerset House courtyard. The self-compacting concrete was cast in-situ between the temporary support structures in a single pour to create a permanent solution. A new access stair to the basement was constructed out of cantilevered stone, connecting the vestibule to the new vaults and improving visitor flow. We also aided Somerset House Trust by undertaking the logistics management of the 2019 Skate delivery.

Our team worked alongside the landlord (Somerset House Trust) and The Courtauld Institute’s staff to maintain the functionality of spaces which remained open throughout the process. And when we unexpectedly discovered Saxon remains underneath the North Wing vaults, we managed the programme implications swiftly and efficiently, diverting works to other areas of the project while the remains were excavated – keeping costs low and the programme on-track.

  • Special Projects

    Our Special Projects team is dedicated to providing complex heritage restoration schemes with the technical excellence and expertise they deserve.

    Find out more

Heritage and Special Projects

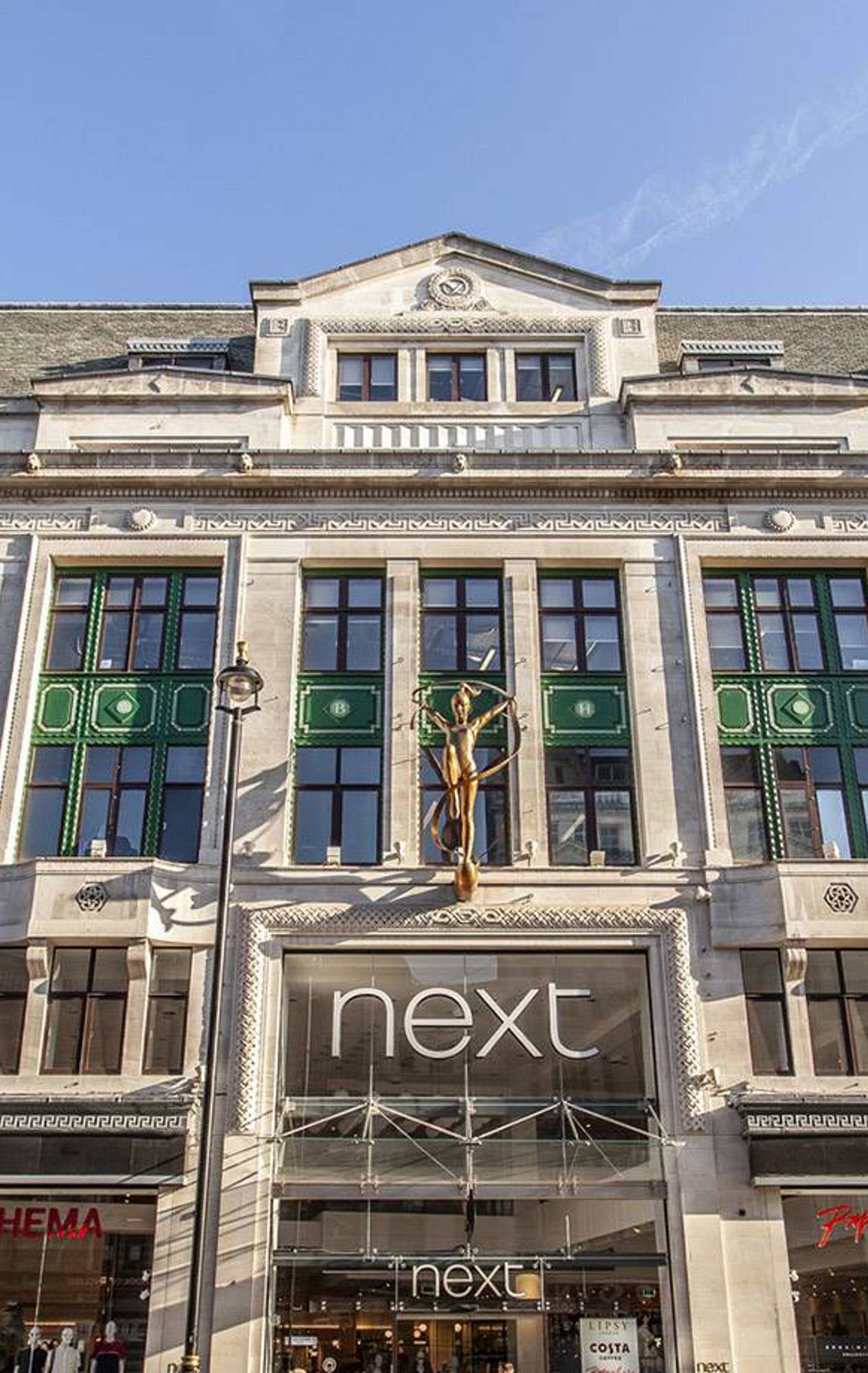

  1. Exterior view of120 Oxford Street in London
